side motor

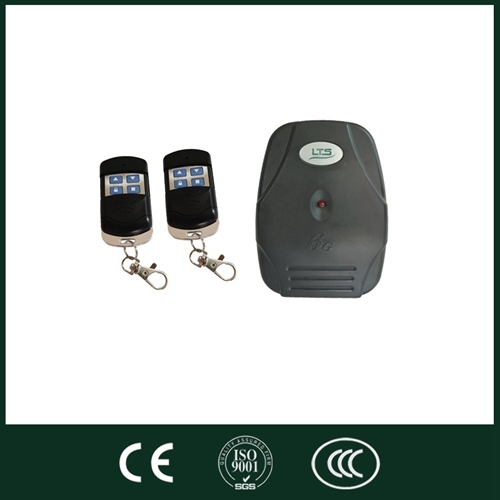

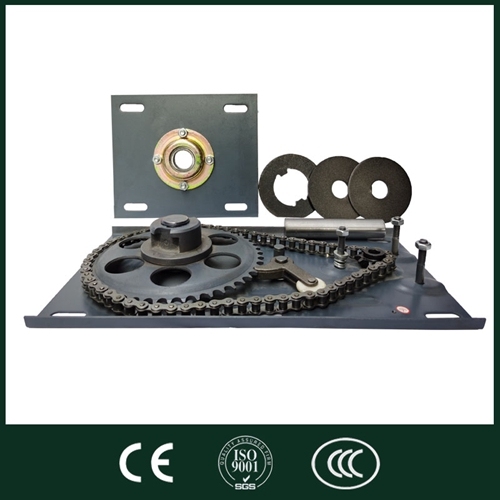

300 KG roller shutter door motor (LTS-300-1P)

LTS is a professional manufacturer which only produce and deliver high quality roller shutter motor. We always put quality into top priority. Long service life, up-to-date Technology, extreme Security, that's our understanding for roller door motors.
INQUIRY
Description

QUICK DETAILS FOR 300 KG ROLLER SHUTTER DOOR MOTOR (LTS-300-1P)


Model Rated voltage / Frequency Input power  Rated output torque Max lifting capacity  Rated current  Rated output speed  Max lifting height  Continuous working time Ambient temperature range
Single Phase
LTS-300-1P 220 V / 50 Hz 600 W 168 N.m 300 KGS 2.8 A 5 r/min 5 meters 7 Min -20°C ~ +50°C


PRODUCT DESCRIPTIONS


LTS is a professional manufacturer which only produces and deliver high-quality roller shutter motor. We always put quality into a top priority. Long service life, up-to-date Technology, extreme Security, that's our understanding for roller door motors.

LTS’s 300 KG roller shutter motors are widely in automatic electric roller shutter doors in commercial, industrial, and residential applications, such as shopping malls, retail stores, banks, factories, warehouses, garages, etc.



FEATURES / ADVANTAGES / BENEFITS OF LTS ROLLER SHUTTER DOOR MOTOR


► Stylish design, up-to-date Technology
►
Overheat protection and overload protection
► Low noise
► Easy manual operation when power failure
► Precise/accurate Limit switch
► Easy to install and adjust
► Low maintenance
► Security, with anti-fall protection device
► Long service life, Durable

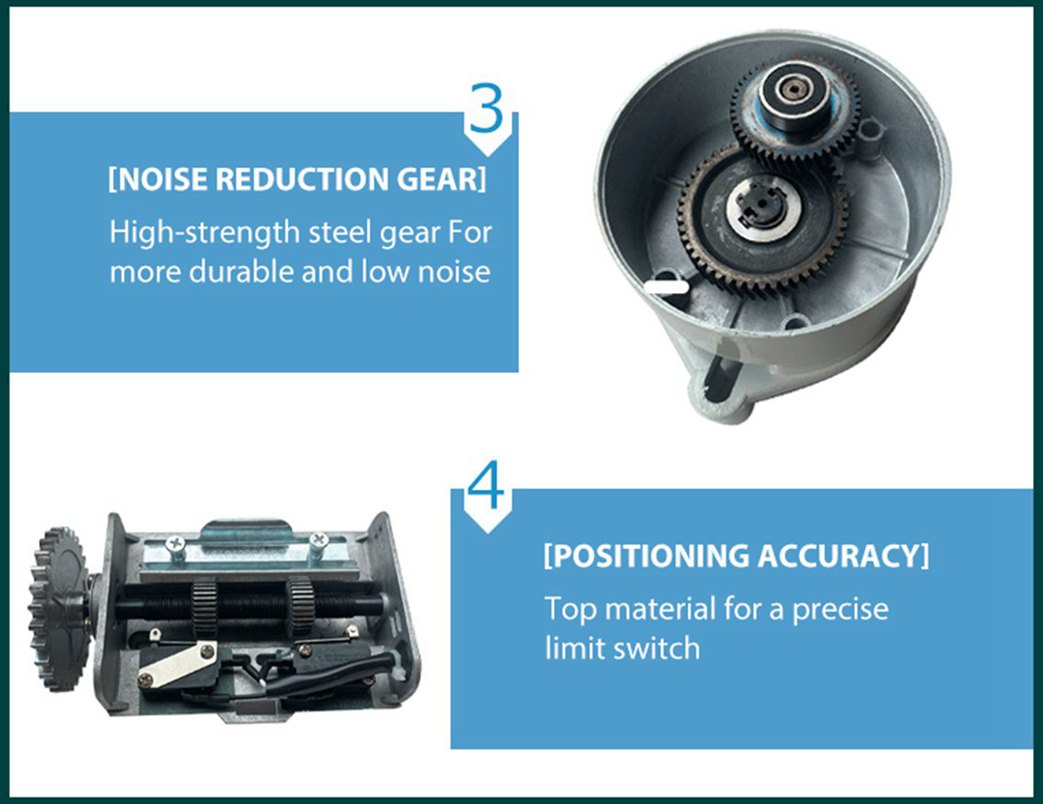

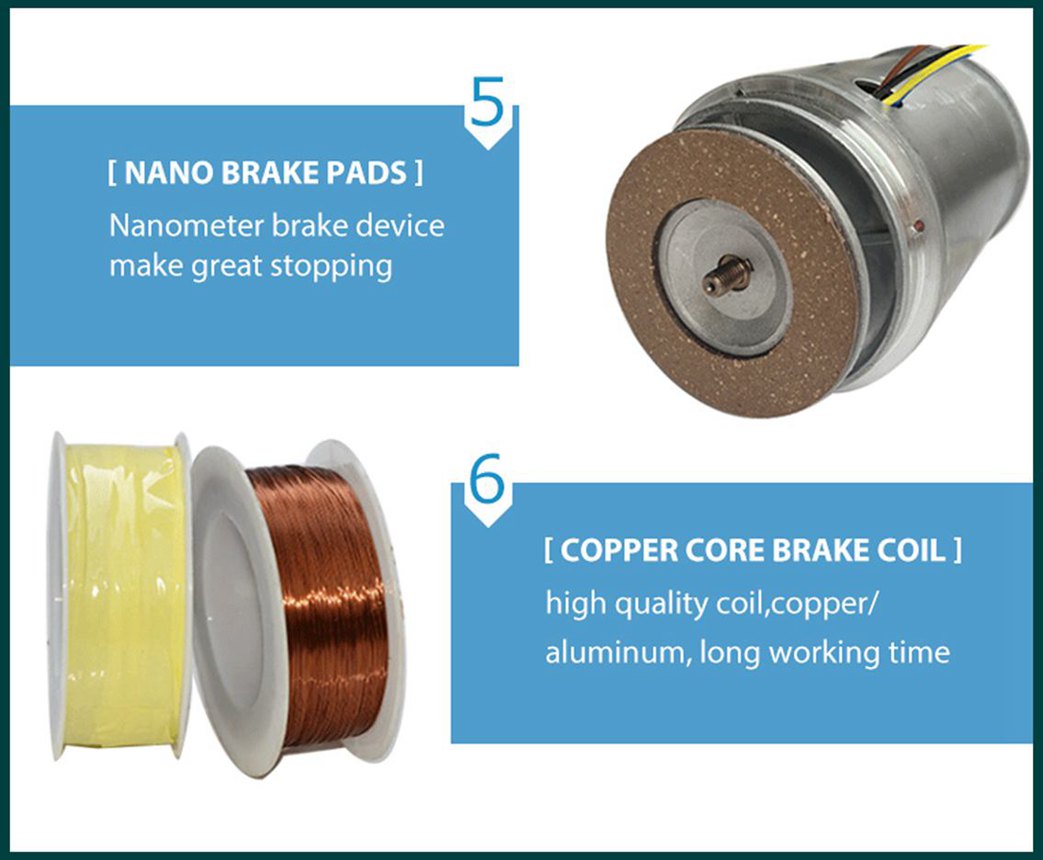

ROLLING SHUTTER MOTOR MAIN STRUCTURES




TECHNICAL DATA SHEET

HOW DO WE STAND OUT?




SAFETY CAUTION:

Please take into consideration the following when choosing the method of operating the roller shutter door  (hereafter mentioned to as a roller shutter).

♦ Children are particularly vulnerable as they could view an open-lattice (or lath with openings) type roller shutter as a framework or attempt to hold onto rock bottom of a roller shutter. If the roller shutter is operated with a toddler clinging onto the roller shutter curtain, they might be lifted up into the roller mechanism and suffer life threatening injuries. it's therefore important that children aren't allowed to play within the vicinity of a roller shutter or have access to its controls.

♦ If an individual is standing or walking under the roller shutter when it's being operated, the finale could crush them.

♦ If an individual is leaning against a roller shutter and it suddenly becomes operational, items of clothing, bags, etc., could hook onto the moving shutter leading to life-threatening injuries.

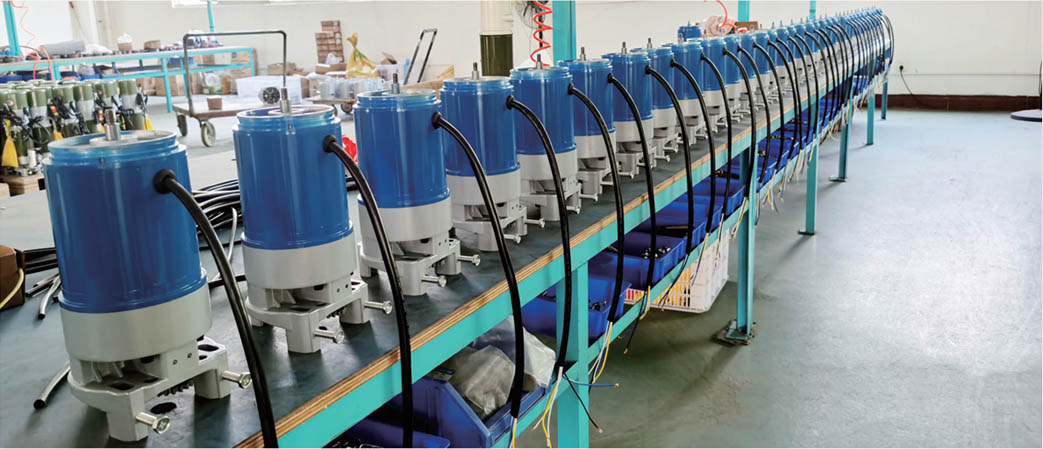

OUR WORKSHOP

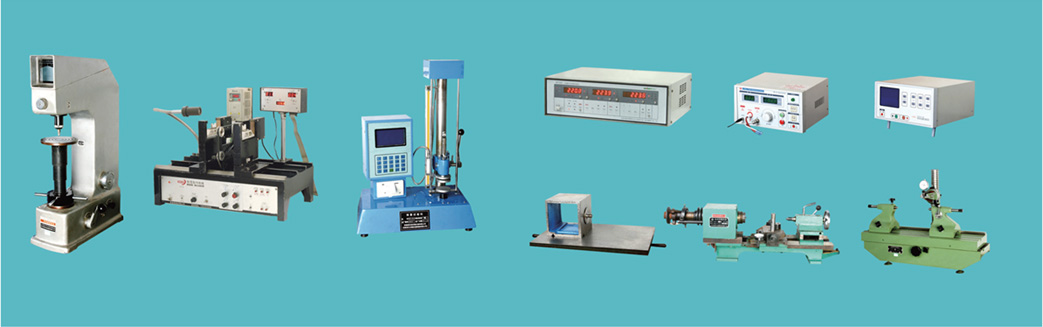

OUR QUALITY CONTROL



OUR PACKING AND SHIPMENT



REMARK:

•  We are able to supply single phase AC roller shutter door motors range from 300KG to 2000KG.
•  3 phases roller shutter door motors are available, ranging from 1000 KG to 2000 KG.
•  DC roller shutter door motors with backup battery control box are also available, with the range of 400 KG to 800 KG, if case of power off, you could still use the remote control to open/close the doors for around 20 times.
•  If you have an idea for roller shutter motor and are looking for a reliable manufacturer to partner up with and bring your products to market, come to us for OEM / ODM / OBM service.
