wind resistant aluminum roller shutter door

Heavy duty industrial Windproof aluminum roller shutter door | Wind resistant aluminum rolling shutter door

Normally for large opening applications, the roller shutter doors should be heavy duty as well as windproof, otherwise, the rolling shutter doors are easy to get damage, that's why we design and develop this type of 120mm heavy duty industrial windproof a
INQUIRY
Description
Heavy duty industrial Windproof aluminum roller shutter door | Wind resistant aluminum rolling shutter door from China

General Descriptions:
Normally for large opening applications, the roller shutter doors should be heavy duty as well as windproof, otherwise, the rolling shutter doors are easy to get damage, that's why we design and develop this type of 120mm heavy duty industrial windproof aluminum roller shutter door.

APPLICATIONS:
♦  Factory
♦  large garage door
♦  workshop
♦  warehose
♦  and more

KEY FEATURES:
It goes without saying that aluminum roller shutter doors are becoming more and more popular, WHY? Here below are the advantages compared to other type of roller shutter doors.
♦  Wind-proof. This are because we are using our custom made windproof guide rail together with windproof enc clips.
♦  Low Noise runing. Compared to galvanized steel or stainless steel, aluminum roller shutter will be less noise during daily runing operation.
♦   Lightweight. Compared to galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.
♦  Ventilation available. The aluminum slats are punched to offer airflow and light transmission .
♦  Many color available.  The natural color, white, blue, green, cream, or any other RAL color by powder coating
♦  High security. Basically we designed this type of roller shutter door to be heady duty industial use, so it offer high security for your property.

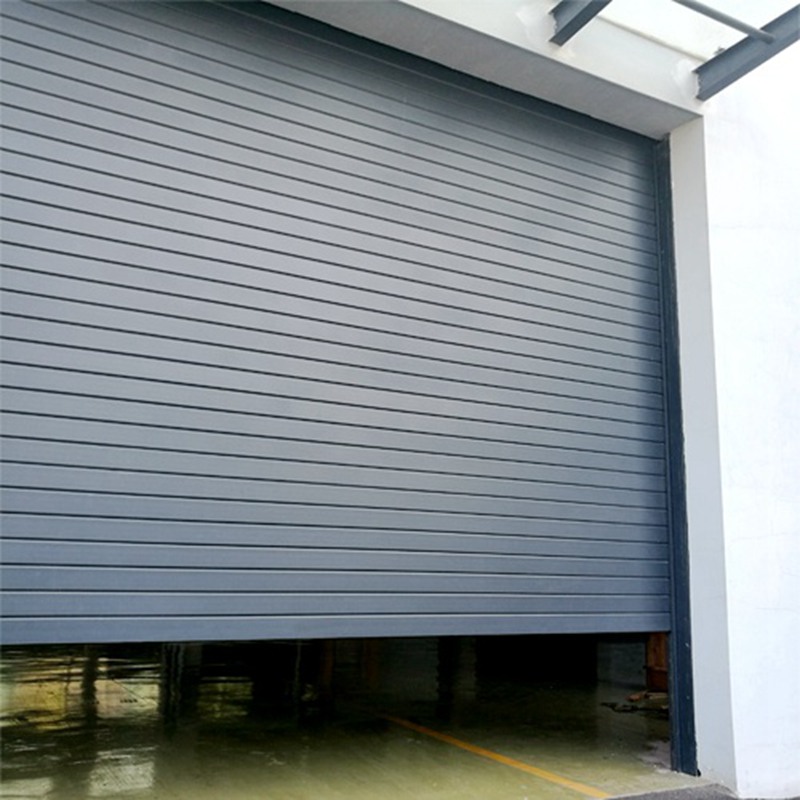

Project photo:


Heavy duty industrial windproof aluminum roller shutter door


TECHNICAL SPECIFICATIONS


Item number Max width Max height Color Operation way Options
SA120 12,000 mm 9,000 mm any RAL color by powder coating motorized operation shutter box, safety sensor, UPS, safety brake, video  surveillance

Curtain:

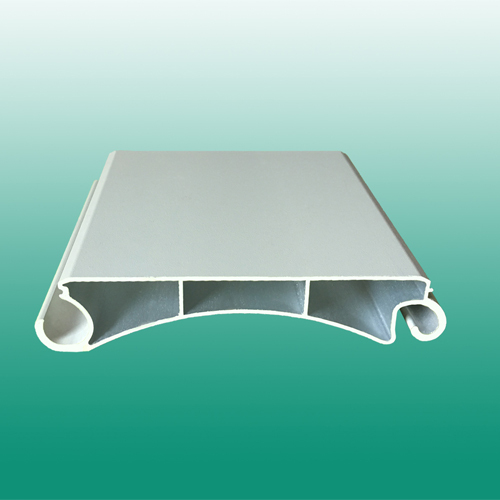

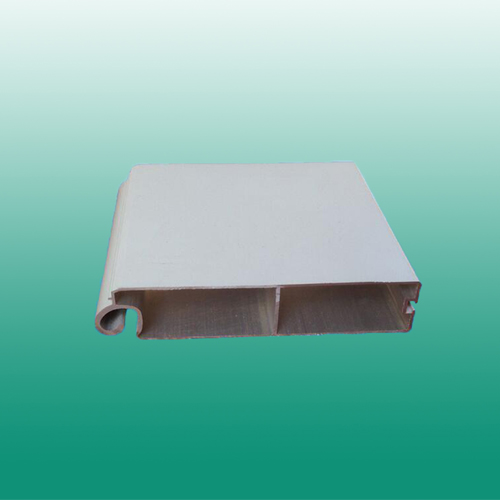

♦Material:double skinned aluminum extruded slat
♦Size: 120mm width (pitch heihgt)
♦Thickness: 1.2mm
♦Color: standard color is white and cream. Any RAL color is available by powder coating at additional cost

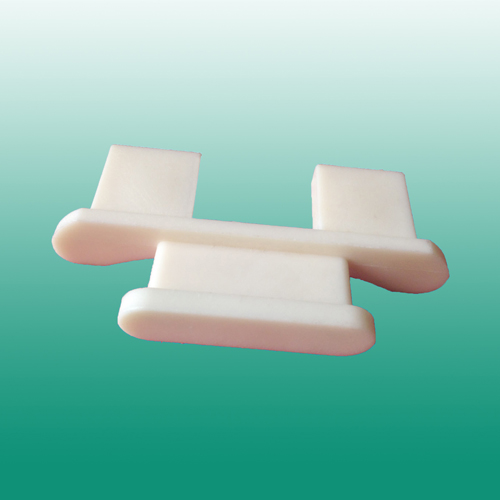

Windproof end clips, end cover


Bottom rail:
♦Material: aluminum
♦With rubber weather seal
♦Max length: 12 meters

Windproof Guide rail:
♦Size: 120 mm,Width*Depth
♦Thickness: 2.5 mm
♦With brush strip
♦Max length: 9 meters



Shaft / Axle:
♦Material: galvanized steel
♦Diameter:8 inches, 10 inches
♦Wall thickness: 3 mm, 4 mm

Operation way:
♦Automatic operation with motor(remote controls, switch button)

Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed

Call now on 0086-20-39010223 to get a free quote or email your basic requirements to
sales@starkingshutter.com and we will get back to you within 12 hours.
