Commercial Side Folding Security Shutter Doors | Chinese Supplier

Starking Shutter Manufacturer Limited offers a wide range of commercial security folding doors and Grilles closures to suit a variety of internal or external situations such as shops, receptions, stores, outlets, hotels, clubs, banks, free standing kiosks
  • Max width35,000 mm
  • Max height4500 mm
  • Colortransparent for polycarbonate panel, any RAL color for aluminum profiles
  • Panel width160mm, 200mm, 250mm, 275mm, 300mm
  • Pocket widthRoughly 10% of the total width of the security shutter door
  • Operation wayManual operation: Stacking to one side / Bid-folding
  • More Less
    Description
    Description

    Commercial Side Folding Security Shutter Doors | Chinese Supplier

    General Descriptions:

    Starking Shutter Manufacturer Limited offers a wide range of commercial security folding doors and Grilles closures to suit a variety of internal or external situations such as shops, receptions, stores, outlets, hotels, clubs, banks, free standing kiosks, cafes and can be easily fitted to wide openings.

    Applications
    ►commercial shopfronts/storefronts/outlets
    ►hotels, clubs, banks

    ►showrooms
    ►partition areas
    ►shopping center/ shopping mall
    ►and more


    Key features
    ►low headroom required
    ►easy to install
    ►low maintenance
    ►made-to-measure, no matter it's straight opening or curved opening.
    ►up to 35 meters width
    ►High Security
    ►Excellent visibility


    Project photos
    Commercial Side Folding Security Shutter Doors

    Commercial Side Folding Security Shutter Doors


    TECHNICAL SPECIFICATIONS


    OPERATION
    Manually operated ONLY, the doors can be either single or bi-parting in operation, stacking to one side or two sides as required depending on side room clearances.

    DOOR PANEL OPTIONS
    ►Polycarbonate: 2.5/3mm thickness polycarbonate panels provide remarkable impact-resistance reinforced with aluminum fixing profiles.
    ►Perforated Aluminum: 2.5/3mm thickness aluminum sheeting which provides approximately 50% ventilation with 3mm diameter micro-perforated holes, reinforced with aluminum fixing profiles.

    ►Solid Aluminum: 2.5/3mm thickness solid plain aluminum sheeting which provides high privacy together with security, reinforced with aluminum fixing profiles.

    ►Panel width options: 160mm, 200mm, 250mm, 275mm, 300mm.

    OPERATING SYSTEM

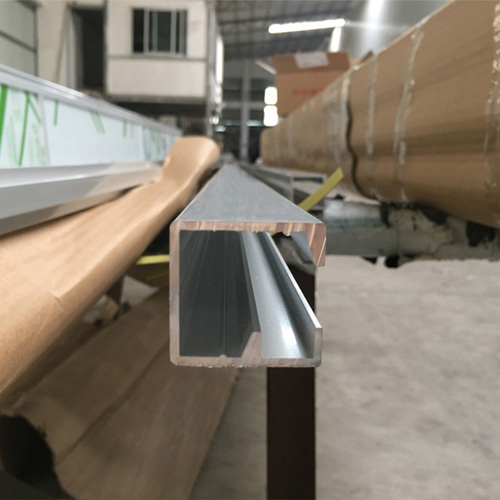

    Our overhead track system is made of 40*40 mm aluminum extrusion profile. Single and double trolley rollers fitted with ball bearings are used and glide in an overhead track. The fitted tracks may have a radius of no less than 600mm to suit curved applications.

    MAXIMUM SIZES
    Our Folding Closures can be manufactured to a maximum height of 4,500mm and can span 35,000mm width opening.

    LOCKING
    The leading posts will be provided with a lock and 2 key cylinders which can be operated from both sides. Floor mounted sockets with dust caps are included.

    FINISH
    Our standard finish is matt natural anodized aluminum.

    Powder coating to ANY stand RAL color is available additional cost

    NOTE: Some special finishes may extend delivery time.

    STACKING POCKET SIZES
    normally the pocket width will be around 10% of the total width, kindly contact us for a specific width according to the panel and opening design.


    Production photos:
    assembly for sliding side folding shutter doors

    sliding side folding shutter doors 2

    sliding side folding shutter doors 3

    Get in touch with us to know more about this product and a free quote.
