Big size windproof aluminum roller shutter door |SA120

  • Max height12,000 mm
  • Max width10, 000 mm
  • thickness1.2 mm
  • colorAny standard RAL color
  • materialAluminum
  • More Less
    Description
    Description
    Large aluminum roller shutter door China/oversize aluminum roller shutter doors China

    General Descriptions:
    For oversize openings exceeding a width of 10,000 mm or a height of 9,000 mm, our SA120 comes with special design that alleviates excessive deflections and enhances wind load capabilities.
    SA120 is windproof / windresistant because of its windproof designed plastic end clips and aluminum guide rail.

    APPLICATIONS:
    ♦  Factory
    ♦  commercial shop fronts
    ♦  workshop
    ♦  warehose
    ♦  and more

    KEY FEATURES:
    It goes without saying that aluminum roller shutter doors are becoming more and more popular, WHY? Here below are the advantages compared to other type of roller shutter doors.
    ♦  Rust-proof. Aluminum roller shutter door is made of aluminum, which makes the door never rust, while normal galvanized steel roller shutter door is easy to get rusty.
    ♦  Noiseless. In between two aluminum slats, we put special long service life rubber for noise reduction. The rubber could also make the door runs more smoothly. The noise level is around GB/TI6730,Rw=20dB.
    ♦   Lightweight. Compared to galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.
    ♦  Ventilation available. The aluminum slats are punched to offer ventilation.
    ♦  Many color available.  The natural color, white, blue, green, cream, or any other RAL color by powder coating
    ♦  Easy to install

    Project photo:




    TECHNICAL SPECIFICATIONS


    Item number Max width Max height Color Operation way Options
    SA8-3 10,000 mm 9,000 mm any RAL color by powder coating manual operation, motorized operation shutter box, safety sensor, UPS, safety brake, video  surveillance

    Curtain:

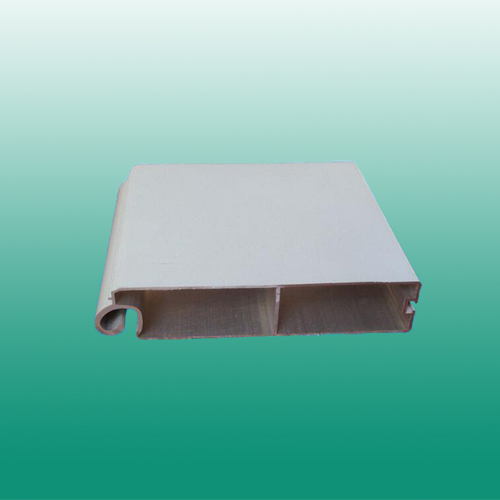

    ♦Material:double skinned aluminum extruded slat
    ♦Size: 120mm width (pitch heihgt)
    ♦Thickness: 1.2mm
    ♦Color: standard color is white and cream. Any RAL color is available by powder coating at additional cost

    Bottom rail:
    ♦Material: aluminum
    ♦With rubber weather seal
    ♦Max length: 10meters

    Guide rail:
    ♦Size: 95*39mm,Width*Depth
    ♦Thickness: 2.5 mm
    ♦With brush strip
    ♦Max length: 9 meters

    Shaft / Axle:
    ♦Material: galvanized steel
    ♦Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches
    ♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

    Operation way:
    ♦Manual operation by hand or hook (push up & push down)
    ♦Automatic operation with motor(remote controls, switch button)

    Optional:
    ♦Shutter box / hood cover
    ♦Perforated slats, punched slats are available if needed
    ♦Wicket door
