Aluminum roller garage door factory | SA80

  • Max height7000mm
  • Max width7000mm
  • thickness1.0mm,1.2mm
  • colorwhite/ cream as standard, other RAL color available if required
  • materialaluminum alloy
  • More Less
    Description
    Description
    Punched+Solid aluminum rolling shutters | Aluminum rolling shutter manufacturer | Model SA80

    PRODUCT DESCRIPTION:
    Aluminium roller shutters are perfect for domestic & commercial applications, they can come in a range of colours and are lightweight so they’re very fuel efficient whilst keeping your assets safe & protected from theft.

    APPLICATIONS:
    Every aluminum roller shutter door is built to your required sizes and dimensions,this type of door is designed and widely used for industrial, commercial, residential applications as following:
    ♦  Front door of a villa
    ♦  commercial shop fronts
    ♦  garage
    ♦  Domestic properties
    ♦  and more

    KEY FEATURES:
    ♦  Rust-proof. Aluminum roller shutter door is made of aluminum, which makes the door never rust, while normal galvanized steel roller shutter door is easy to get rusty.
    ♦  Noiseless. In between two aluminum slats, we put special long service life rubber for noise reduction. The rubber could also make the door runs more smoothly. The noise level is around GB/TI6730,Rw=20dB.
    ♦   Lightweight. Compared to galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.
    ♦  Ventilation available. The aluminum slats are punched to offer ventilation.
    ♦  Many color available.  The natural color, white, blue, green, cream, or any other RAL color by powder coating
    ♦  Easy to install

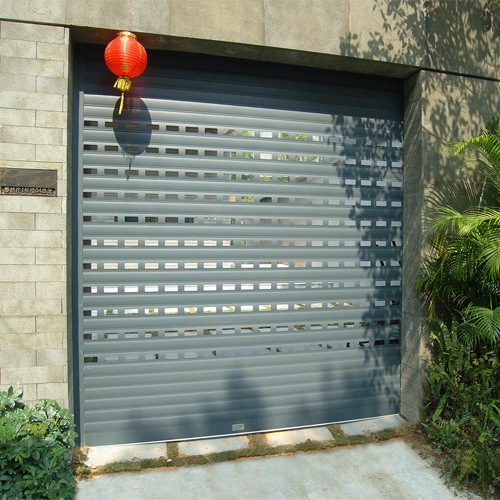

    Project photo:
    Punched aluminum rolling shutters
    TECHNICAL SPECIFICATIONS
    Item number Max width Max height Color Operation way Options
    SA8-3 7,200 mm 7,200 mm any RAL color by powder coating manual operation, motorized operation shutter box, safety sensor, UPS, safety brake, video  surveillance

    Curtain:

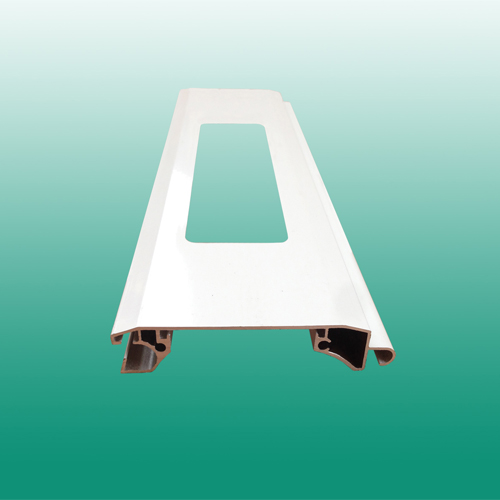

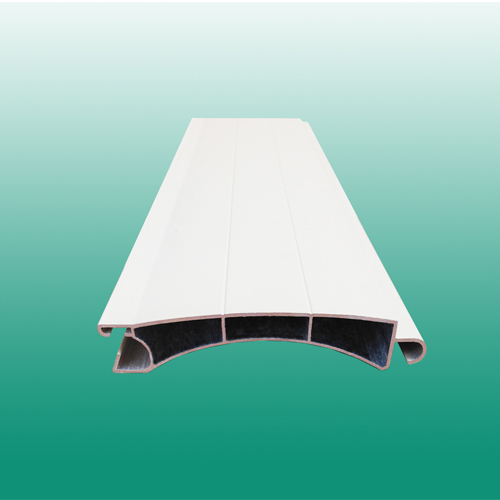

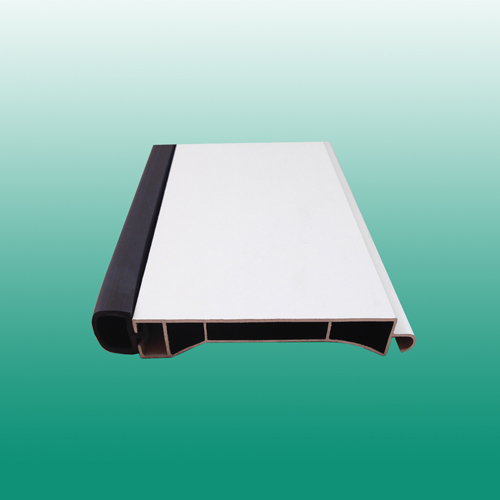

    ♦Material: single skinned aluminum extruded slat+Solid aluminum rolling shutters
    ♦Size: 80 mm width (pitch heihgt)
    ♦Thickness: 1.2mm / 1.0 mm
    ♦Color: standard color is white and cream. Any RAL color is available by powder coating at additional cost

    Bottom rail:
    ♦Material: aluminum
    ♦With rubber weather seal
    ♦Max length: 7.2 meters

    Guide rail:
    ♦Size: 95*39mm,Width*Depth
    ♦Thickness: 2.5 mm
    ♦With brush strip
    ♦Max length: 7.2 meters

    Shaft / Axle:
    ♦Material: galvanized steel
    ♦Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches
    ♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

    Operation way:
    ♦Manual operation by hand or hook (push up & push down)
    ♦Automatic operation with motor(remote controls, switch button)

    Optional:
    ♦Shutter box / hood cover
    ♦Wicket door
    ♦Motor: Tubular motor or side motor motor are available for different size of doors

    Call now on 0086-20-39010223 to get a free quote or email your basic requirements to
    [email protected] and we willgo back to you asap.
